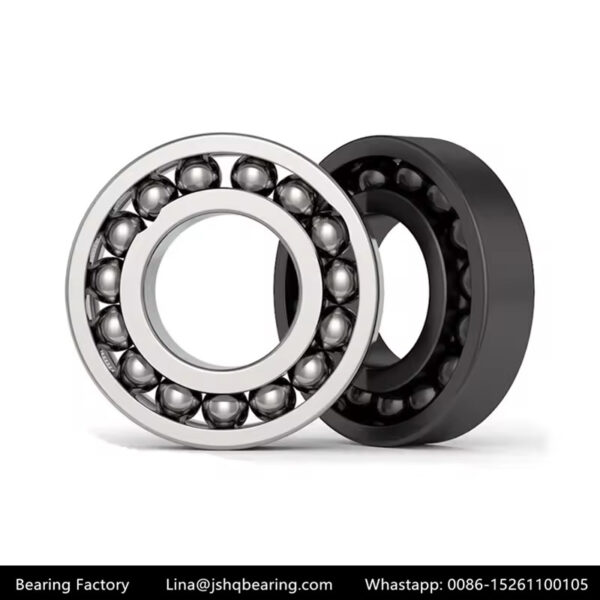

6305 Temperature Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Bore Diameter | d | 25 | ±0.010 | mm |
| Outer Diameter | D | 62 | ±0.018 | mm |
| Overall Width | B | 17 | ±0.1 | mm |
| Dynamic Load Rating | C | 29.1 | — | kN |
| Static Load Rating | C₀ | 15.2 | — | kN |
| Operating Temperature | — | -40 ~ 350 | — | ℃ |
| Limiting Speed | — | 7000 | — | r/min |
| Approximate Weight | — | 0.180 | — | kg |
