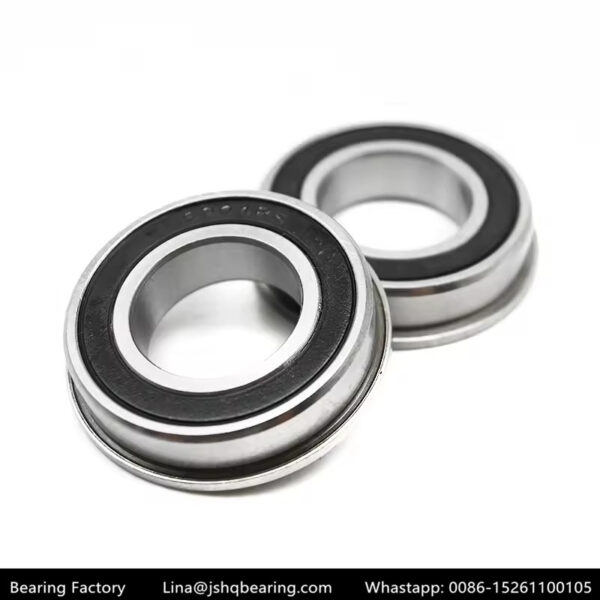

F6003 Flange Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Bore Diameter | d | 17 | ±0.008 | mm |
| Outer Diameter | D | 35 | ±0.015 | mm |
| Overall Width | B | 10 | ±0.1 | mm |
| Flange Diameter | Df | 42 | ±0.2 | mm |
| Flange Thickness | T | 2 | — | mm |
| Dynamic Load Rating | C | 8.3 | — | kN |
| Static Load Rating | C₀ | 4.1 | — | kN |
| Limiting Speed | — | 15000 | — | r/min |
| Approximate Weight | — | 0.030 | — | kg |
