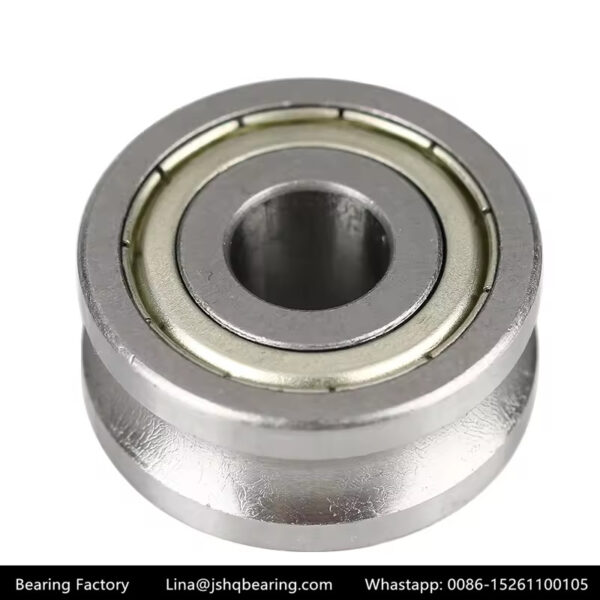

LFR5201 Groove Bearing
| Parameter | Specification |
|---|---|
| Bearing Model | LFR5201 Track Roller Bearing |
| Structure | Double Row Angular Contact Ball Bearing with U-Groove (Gothic Arch) Outer Ring |
| Inner Diameter (d) | 12 mm |
| Outer Diameter (D) | 35 mm |
| Width (C) | 15.9 mm |
| Groove Diameter (dw) | 10 mm |
| Roller / Ring Material | High Carbon Chrome Steel (GCr15) |
| Seal Type | NPP (Rubber Seal) / KDD (Metal Shield) |
| Dynamic Load Rating (Cw) | ~8,400 – 8,500 N |
| Static Load Rating (Cow) | ~5,000 – 5,100 N |
| Weight | ~68 g |
| Key Features | U-Groove Design for Cylindrical Tracks, 60° Two-Point Contact, High Radial Load Capacity, Low Friction, Smooth & Quiet Operation |
