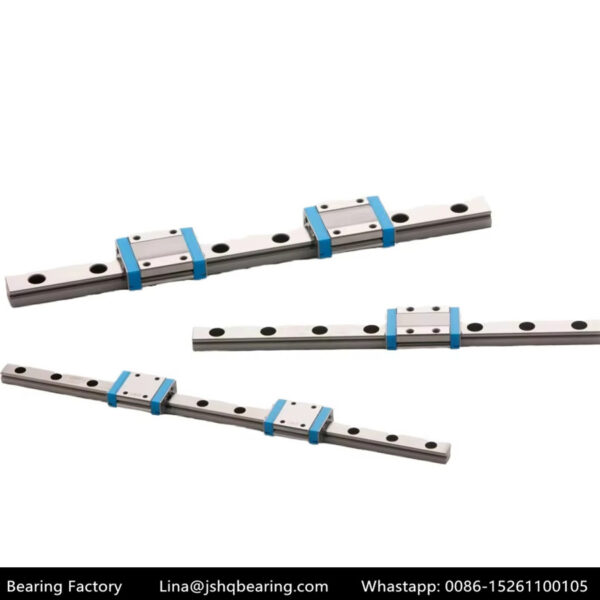

MGW7C Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 7 | ±0.03 | mm |
| Slider Length | L | 24.5 | ±0.10 | mm |
| Slider Width | B | 19 | ±0.10 | mm |
| Slider Height | H | 10 | ±0.05 | mm |
| Mounting Screw Hole | d1 | 2.5 | — | mm |
| Number of Screw Holes | — | 2 | — | pcs |
| Dynamic Load Rating | C | 0.76 | — | kN |
| Static Load Rating | C₀ | 0.80 | — | kN |
| Limiting Speed | — | 100 | — | m/min |
| Approximate Weight | — | 0.006 | — | kg |
