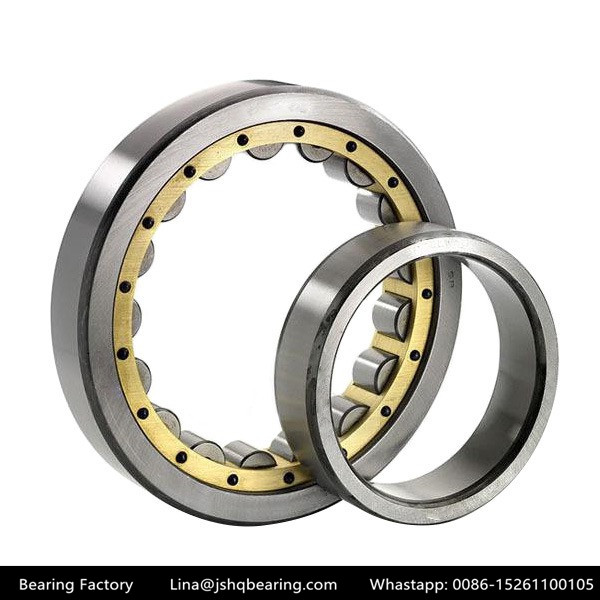

N203 Cylindrical Roller Bearing
| Parameter | Specification |
|---|---|
| Bearing Model | N203 Cylindrical Roller Bearing |
| Standard | ISO 15-1998 / DIN 5412-1 |
| Structure | Single Row Cylindrical Roller Bearing (N Design) |
| Inner Diameter (d) | 17 mm |
| Outer Diameter (D) | 40 mm |
| Width (B) | 12 mm |
| Roller / Ring Material | High Carbon Chrome Steel (Ti < 30ppm) |
| Cage Material | Pressed Steel (F1), Machined Brass (M/ME), or Glass-fiber Reinforced Polyamide (TVP2) |
| Dynamic Load Rating (Cr) | ~9,120 – 20,800 N |
| Static Load Rating (Cor) | ~7,000 – 14,600 N |
| Limiting Speed (Grease) | ~14,000 – 20,000 r/min |
| Limiting Speed (Oil) | ~18,000 – 22,000 r/min |
| Weight | ~0.066 – 0.073 kg |
| Key Features | High Radial Load Capacity, High-Speed Capable, Separable Design, Non-locating (Axial displacement in both directions) |
