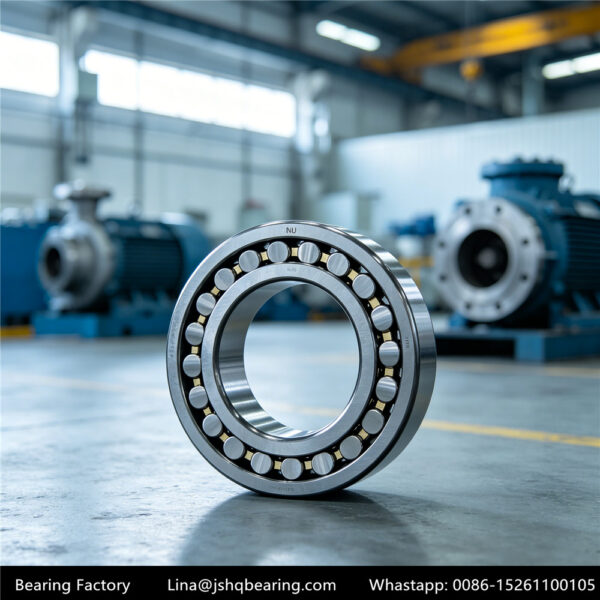

NU206 Cylindrical Roller Bearing
| Parameter | Specification |
|---|---|
| Bearing Model | NU206 Cylindrical Roller Bearing |
| Standard | ISO 15-1998 / DIN 5412-1 |
| Structure | Single Row Cylindrical Roller Bearing (NU Design) |
| Inner Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 16 mm |
| Roller / Ring Material | High Carbon Chrome Steel (Hardened Alloy Steel) |
| Cage Material | Pressed Steel, Reinforced Molded Polymer (ECP/TVP2), or Machined Brass (M) |
| Dynamic Load Rating (Cr) | ~39,000 – 44,000 N |
| Static Load Rating (Cor) | ~36,500 – 37,500 N |
| Limiting Speed (Grease) | ~12,000 – 13,000 r/min |
| Limiting Speed (Oil) | ~13,000 – 14,000 r/min |
| Weight | ~0.203 – 0.225 kg |
| Key Features | High Radial Load Capacity, High-Speed Capable, Separable Design, Non-locating (Axial displacement in both directions) |
