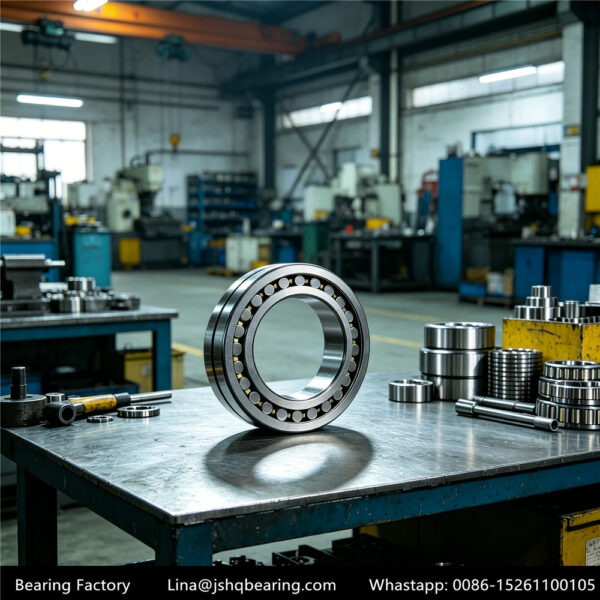

NU310 Cylindrical Roller Bearing
| Parameter | Specification |
|---|---|
| Bearing Model | NU310 Cylindrical Roller Bearing |
| Standard | ISO 15-1998 / DIN 5412-1 |
| Structure | Single Row Cylindrical Roller Bearing (NU Design) |
| Inner Diameter (d) | 50 mm |
| Outer Diameter (D) | 110 mm |
| Width (B) | 27 mm |
| Roller / Ring Material | High Carbon Chrome Steel (Hardened Alloy Steel) |
| Cage Material | Pressed Steel, Reinforced Molded Polymer (ECP/TVP2), or Machined Brass (M1) |
| Dynamic Load Rating (Cr) | ~86,000 – 110,000 N |
| Static Load Rating (Cor) | ~86,000 – 113,000 N |
| Limiting Speed (Grease) | ~5,000 – 6,500 r/min |
| Limiting Speed (Oil) | ~6,000 – 7,700 r/min |
| Weight | ~1.14 – 1.36 kg |
| Key Features | High Radial Load Capacity, High-Speed Capable, Separable Design, Non-locating (Axial displacement in both directions) |
