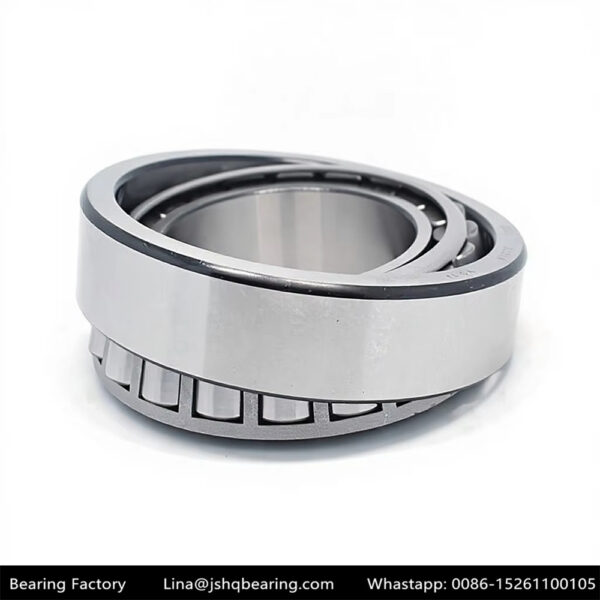

Single Row Inch Size Tapered Roller Bearing
| Bearing No. | Boundary dimensions（mm） | Basic load ratings(kN) | |||||||
| d | B | R | D | C | r | T | Dynamic(Cr) | Static(Cor) | |
| 1380 | 22.225 | 20.168 | 1.5 | ||||||
| 1380/28 | 22.225 | 20.168 | 1.5 | 52.388 | 14.288 | 1.5 | 19.368 | 40.5 | 43 |
| 14117A/276 | 30 | 19.583 | 1.3 | 69.012 | 15.875 | 3.5 | 19.845 | 48.5 | 58 |
| 14125A | 31.75 | 19.583 | 1.3 | ||||||
| 14137A | 34.925 | 19.583 | 1.3 | ||||||
| 14137A/276 | 34.925 | 19.583 | 1.3 | 69.012 | 15.875 | 1.5 | 19.845 | 48.5 | 58 |
| 14276 | 69.012 | 15.875 | 1.3 | ||||||
| 15100 | 25.4 | 20.638 | 1.3 | ||||||
| 15100/245 | 25.4 | 20.638 | 1.3 | 62 | 14.288 | 3.5 | 19.05 | 46.5 | 54 |
| 15101 | 25.4 | 20.638 | 2 | ||||||
| 15101/243 | 25.4 | 20.638 | 2 | 61.912 | 14.288 | 0.8 | 19.05 | 46.5 | 54 |
| 15103 | 26.157 | 20.638 | 1.3 | ||||||
| 15103/245 | 26.157 | 20.638 | 1.3 | 62 | 14.288 | 0.8 | 19.05 | 46.5 | 54 |
| 15106 | 26.988 | 20.638 | 1.3 | ||||||
| 15106/245 | 26.988 | 20.638 | 1.3 | 62 | 14.288 | 0.8 | 19.05 | 46.5 | 54 |
| 15123 | 31.75 | 19.05 | 1.3 | ||||||
| 15123/245 | 31.75 | 19.05 | 1.3 | 62 | 14.288 | 18.161 | 46.5 | 54 | |
| 15125 | 31.75 | 20.638 | 1.3 | ||||||
| 15125/245 | 31.75 | 20.638 | 1.3 | 62 | 14.288 | 3.5 | 19.05 | 46.5 | 54 |
| 15126 | 31.75 | 20.638 | 1.3 | ||||||
| 15126/245 | 31.75 | 20.638 | 1.3 | 62 | 14.288 | 0.8 | 19.05 | 46.5 | 54 |
| 15243 | 61.912 | 14.288 | 0.8 | ||||||
| 15245 | 62 | 14.288 | 0.8 | ||||||
| 1780 | 25.4 | 19.837 | 1.3 | ||||||
| 18520 | 73.025 | 12.7 | 3.5 | ||||||
| 18590 | 41.275 | 17.462 | 1.5 | ||||||
| 18590/20 | 41.275 | 17.462 | 1.5 | 73.025 | 12.7 | 3.5 | 16.667 | 46 | 55.5 |
| 18620 | 79.375 | 13.495 | 2.8 | ||||||
| 18690 | 46.038 | 17.462 | 1.5 | ||||||
| 18720 | 85 | 13.495 | 3.5 | ||||||
| 18790 | 50.8 | 17.462 | 1.3 | ||||||
| 18790/20 | 50.8 | 17.462 | 1.5 | 85 | 13.495 | 3.5 | 17.462 | 49.5 | 65 |
| 24780 | 41.275 | 23.02 | 0.8 | ||||||
| 24780/20 | 41.275 | 23.02 | 0.8 | 76.2 | 17.462 | 3.5 | 22.225 | 65 | 80.5 |
| 25520 | 82.931 | 19.05 | 3.5 | ||||||
| 25522 | 83.058 | 19.114 | 3.5 | ||||||
| 25580 | 44.45 | 25.4 | 0.8 | ||||||
| 25580/20 | 44.45 | 25.4 | 0.8 | 82.931 | 19.05 | 3.5 | 23.812 | 76 | 98 |
| 25590 | 45.618 | 25.4 | 2.3 | ||||||
| 25590/20 | 45.618 | 25.4 | 0.8 | 82.931 | 19.05 | 3.5 | 23.812 | 76 | 98 |
