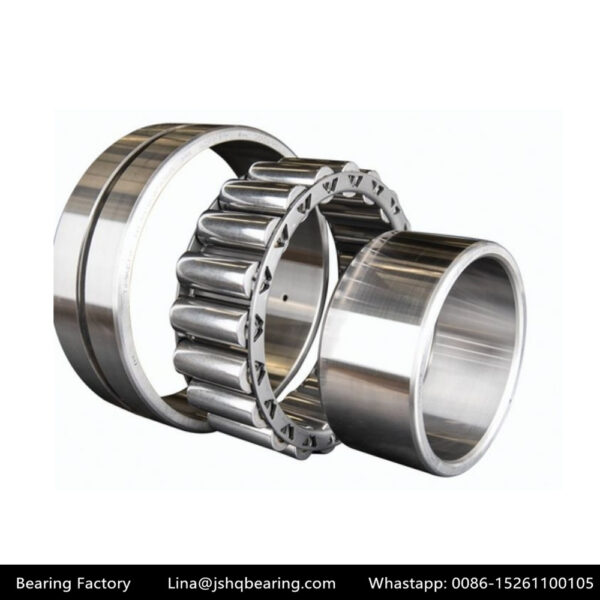

TIMKEN ADAPT Bearings
| Bearing Model | Series | Bore d (mm) | Outer D (mm) | Width C (mm) | r(min) (mm) | Dynamic Radial Cr (kN) | Static Radial C0r (kN) | Cage/Retainer | Max Misalignment (°) | Axial Float (mm) | Key Design |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TA4020VC3 | Full‑Complement | 100 | 150 | 50 | 2 | 575 | 349 | Steel Retainer | 0.5 | ±6 | Cageless, high load |
| TA4026VC3 | Full‑Complement | 130 | 200 | 69 | 2.5 | 677 | 1,140 | Steel Retainer | 0.5 | ±6 | ISO 2212 dimensions |
| TA3140KW906AC3 | Caged | 200 | 340 | 112 | 3 | 1,730 | 2,370 | Triangular Steel | 0.5 | ±6 | Caged, high speed |
| TA3160M | Caged | 300 | 500 | 160 | 4 | 3,180 | 5,140 | Machined Brass | 0.5 | ±6 | Heavy‑duty mill grade |
