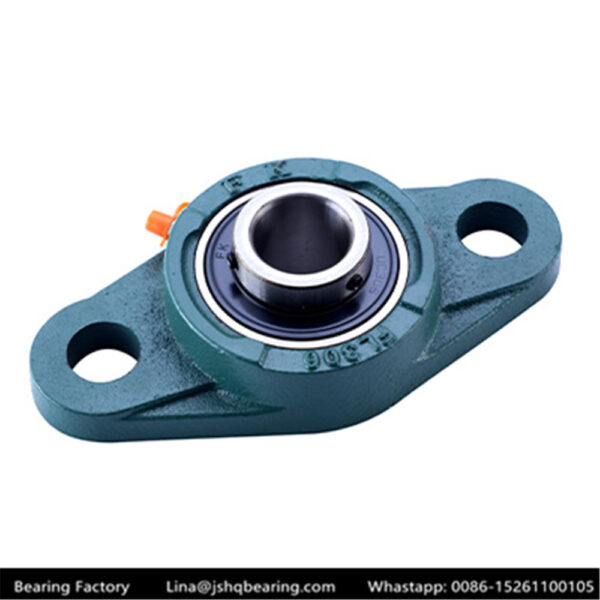

UCFL300 Bearing
| Model | d (Bore) | D (OD) | B | J | A | H1 | N | Static Load (Cā) | Dynamic Load (C) | Weight (Approx.) |
|---|---|---|---|---|---|---|---|---|---|---|
| UCFL305 | 25 | 72 | 45.0 | 60 | 90 | 34 | 14 | 31.5 | 60.0 | 0.85 |
| UCFL306 | 30 | 80 | 49.0 | 64 | 96 | 37 | 14 | 38.0 | 71.0 | 1.05 |
| UCFL307 | 35 | 90 | 53.0 | 71 | 106 | 41 | 16 | 47.5 | 85.0 | 1.35 |
| UCFL308 | 40 | 100 | 57.0 | 78 | 116 | 45 | 18 | 58.0 | 100.0 | 1.70 |
| UCFL309 | 45 | 110 | 61.0 | 86 | 128 | 49 | 20 | 71.0 | 118.0 | 2.10 |
| UCFL310 | 50 | 120 | 65.0 | 94 | 140 | 53 | 20 | 85.0 | 138.0 | 2.60 |
| UCFL311 | 55 | 130 | 69.0 | 102 | 152 | 57 | 22 | 102.0 | 160.0 | 3.20 |
| UCFL312 | 60 | 140 | 73.0 | 110 | 164 | 61 | 22 | 120.0 | 182.0 | 3.90 |
| UCFL313 | 65 | 150 | 77.0 | 118 | 176 | 65 | 24 | 140.0 | 205.0 | 4.70 |
| UCFL314 | 70 | 160 | 81.0 | 126 | 188 | 69 | 26 | 162.0 | 230.0 | 5.70 |
| UCFL315 | 75 | 170 | 85.0 | 134 | 200 | 73 | 28 | 188.0 | 255.0 | 6.80 |
| UCFL316 | 80 | 180 | 89.0 | 142 | 212 | 77 | 28 | 215.0 | 280.0 | 8.00 |
| UCFL317 | 85 | 190 | 93.0 | 150 | 224 | 81 | 30 | 245.0 | 305.0 | 9.40 |
| UCFL318 | 90 | 200 | 97.0 | 158 | 236 | 85 | 32 | 278.0 | 330.0 | 11.00 |
| UCFL319 | 95 | 210 | 101.0 | 166 | 248 | 89 | 32 | 312.0 | 355.0 | 12.80 |
| UCFL320 | 100 | 220 | 105.0 | 174 | 260 | 93 | 35 | 348.0 | 380.0 | 14.80 |
