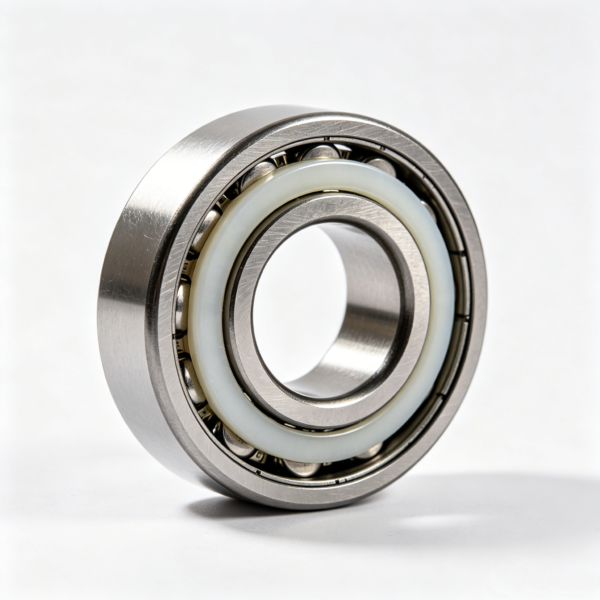

Bearing steel hybrid ceramic bearing
Metric Series (Unit: mm)
| Model | d | D | B | Bearing Type | Seal | Material |
|---|---|---|---|---|---|---|
| 623HB | 3 | 10 | 4 | Deep Groove | Open | GCr15 + Si₃N₄ |
| 608HB-ZZ | 8 | 22 | 7 | Deep Groove | ZZ | GCr15 + Si₃N₄ |
| 625HB-2RS | 5 | 16 | 5 | Deep Groove | 2RS | GCr15 + Si₃N₄ |
| 7204HB | 20 | 47 | 14 | Angular Contact | Open | GCr15 + Si₃N₄ |
| F5-12HB | 5 | 12 | 4.5 | Thrust Ball | Open | GCr15 + Si₃N₄ |
Imperial Series (Inch & mm)
| Model | d(inch) | d(mm) | D(inch) | D(mm) | B(inch) | B(mm) | Type | Seal |
|---|---|---|---|---|---|---|---|---|
| R2HB | 3/16″ | 4.762 | 1/2″ | 12.700 | 3/16″ | 4.762 | Deep Groove | Open |
| R4HB-ZZ | 1/4″ | 6.350 | 5/8″ | 15.875 | 1/4″ | 6.350 | Deep Groove | ZZ |
| T02HB | 5/16″ | 7.938 | 3/4″ | 19.050 | 0.250″ | 6.350 | Thrust | Open |
Bearing steel hybrid ceramic bearings use high-carbon chromium bearing steel (GCr15) for inner and outer rings, matched with lightweight silicon nitride (Si₃N₄) ceramic balls. They retain the high load capacity, high rigidity and low cost of traditional bearing steel, while gaining advantages of ceramic balls: ultra-low friction, higher speed limit, less heat generation and anti-electrical corrosion. Available in open, ZZ shielded and 2RS sealed styles, including deep groove, angular contact and thrust types. Widely used for high-speed motors, precision spindles, racing parts, mechanical equipment and general high-speed rotating components.
