Stainless steel dental drill bearings R144 series
| Model | Bore d | Outer D | Width B | Seal | Ball Material | Cage |
|---|---|---|---|---|---|---|
| R144 (SR144TL) | 3.175 mm (1/8″) | 6.35 mm (1/4″) | 2.38 mm (0.0937″) | Open | 440C Steel | TORLON |
| SR144TLN | 3.175 mm | 6.35 mm | 2.38 mm | Open | Si₃N₄ Ceramic | TORLON |
| SR144TLW | 3.175 mm | 6.35 mm | 2.78 mm | Open | 440C Steel | TORLON |
| SR144TLWN | 3.175 mm | 6.35 mm | 2.78 mm | Open | Si₃N₄ Ceramic | TORLON |
| SR144ZZ | 3.175 mm | 6.35 mm | 2.78 mm | ZZ Shielded | 440C Steel | PTFE |
| SR144TLZWN | 3.175 mm | 6.35 mm | 2.78 mm | ZZ Shielded | Si₃N₄ Ceramic | TORLON |

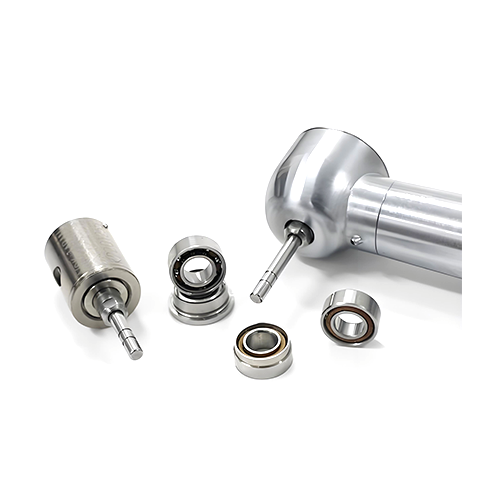

R144 series are high-speed miniature deep groove ball bearings dedicated to dental handpieces, also known as dental turbine bearings. Made of 440C (9Cr18) stainless steel for inner/outer rings, with stainless steel (440C) or silicon nitride (Si₃N₄) ceramic balls, and high-performance cages (TORLON/PEEK/PTFE). Precision grade ABEC-7 (P4), enabling 350,000–450,000 rpm under 200–250 kPa air pressure. Features: high speed, low noise, low vibration, high temperature & corrosion resistance, autoclavable, ideal for high-speed dental handpieces.
