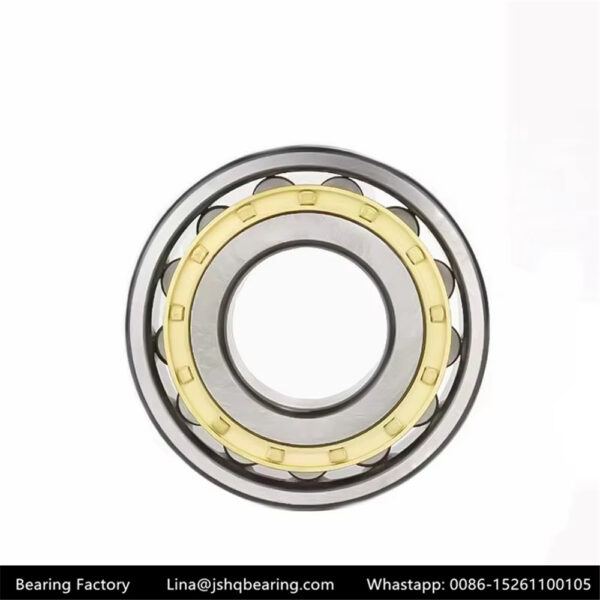

FAG Roller Bearings

Bearing Model	Series Type	Bore d (mm)	Outer Dia D (mm)	Width B (mm)	Basic Dynamic Radial Load Cr (N)	Basic Static Radial Load C0r (N)	Grease Lubrication Limit Speed (min⁻¹)	Oil Lubrication Limit Speed (min⁻¹)	Reference Mass (g)	Notes
NU208-E-TVP2	Single Row Cylindrical Roller	40	80	18	58500	63000	7500	9500	420	Inner ring without ribs, polyamide cage
NJ210-E-M1	Single Row Cylindrical Roller	50	90	20	76500	88000	6700	8500	580	Inner ring single rib, brass cage
NUP212-E-TVP2	Single Row Cylindrical Roller	60	110	22	106000	122000	6000	7800	850	Inner ring single rib with retaining ring
NN3014-AS-K-M-SP	Double Row Cylindrical Roller	70	110	30	148000	195000	5200	6800	1350	Tapered bore, lubrication grooves, SP precision
22212-E1-K	Spherical Roller	60	110	28	143000	170000	4800	6000	1120	Self-aligning, tapered bore, reinforced design
23126-BE-XL	Spherical Roller	130	210	64	565000	865000	2600	3400	12800	Double row, extended life, heavy duty
32210-A	Tapered Roller	50	90	23	86500	104000	5800	7300	590	Single cone, standard clearance
32314-A	Tapered Roller	70	150	51	245000	315000	3800	4800	2850	Heavy duty, large contact angle
NK40/20-TV	Needle Roller	40	50	20	28500	53000	8500	11000	85	Without inner ring, polyamide cage
NKI50/25-TV	Needle Roller	50	62	25	42500	85000	7200	9200	130	With inner ring, compact design
81112-TV	Cylindrical Roller Thrust	60	85	17	–	155000	4200	5500	240	Single direction axial load
29417-E-M	Spherical Roller Thrust	85	180	58	–	765000	2100	2800	3850	Self-aligning, brass cage, heavy axial load
