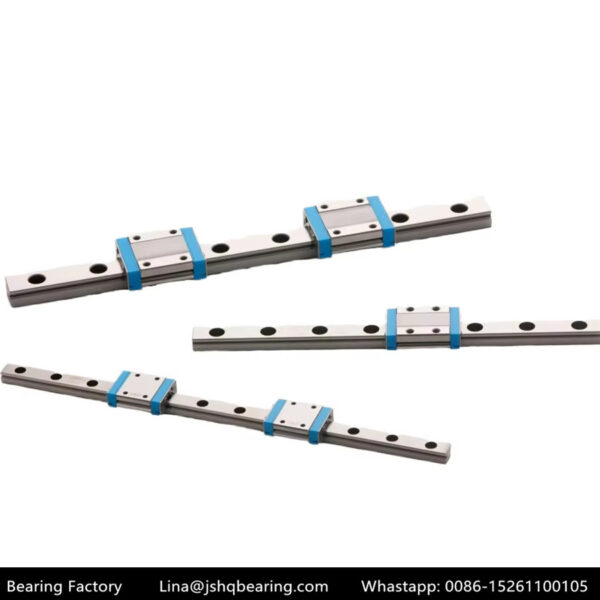

HGH15CA Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 15 | ±0.05 | mm |
| Slider Length | L | 57 | ±0.10 | mm |
| Slider Width | B | 34 | ±0.10 | mm |
| Slider Height | H | 24 | ±0.05 | mm |
| Flange Width | BF | 48 | ±0.15 | mm |
| Mounting Screw Hole Diameter | d1 | 4.5 | — | mm |
| Number of Mounting Screw Holes | n | 4 | — | pcs |
| Rated Dynamic Load | C | 6.82 | — | kN |
| Rated Static Load | C₀ | 6.63 | — | kN |
| Limiting Speed (Standard Grease) | — | 150 | — | m/min |
| Approximate Weight | — | 0.120 | — | kg |
