Metric thin-walled bearings
| Model | d (内径) | D (外径) | B (宽度) | Type |
|---|---|---|---|---|
| K2508CP0 | 25 | 41 | 8 | Radial (C) |
| K3008CP0 | 30 | 46 | 8 | Radial (C) |
| K3508AP0 | 35 | 51 | 8 | Angular (A) |
| K4008XP0 | 40 | 56 | 8 | Four-point (X) |
| Model | d (内径) | D (外径) | B (宽度) | Type |
|---|---|---|---|---|
| K5013CP0 | 50 | 76 | 13 | Radial (C) |
| K6013AP0 | 60 | 86 | 13 | Angular (A) |
| K7013XP0 | 70 | 96 | 13 | Four-point (X)
|
| Model | d (内径) | D (外径) | B (宽度) | Type |
|---|---|---|---|---|
| K8020CP0 | 80 | 120 | 20 | Radial (C) |
| K10020AP0 | 100 | 140 | 20 | Angular (A) |

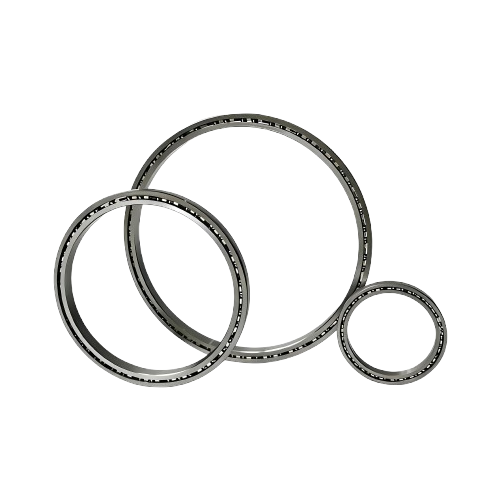

Metric thin-walled (thin section) bearings are high-precision ball bearings with constant ultra-thin cross-sections (8/13/20mm) in metric sizes. They save space and weight significantly while maintaining high accuracy, low torque, and rigid performance. Available in radial (C), angular contact (A), four-point contact (X) types, open/ZZ/2RS sealed. Materials: chrome steel GCr15, stainless steel 9Cr18. Widely used in robotics, aerospace, medical devices, precision instruments.
