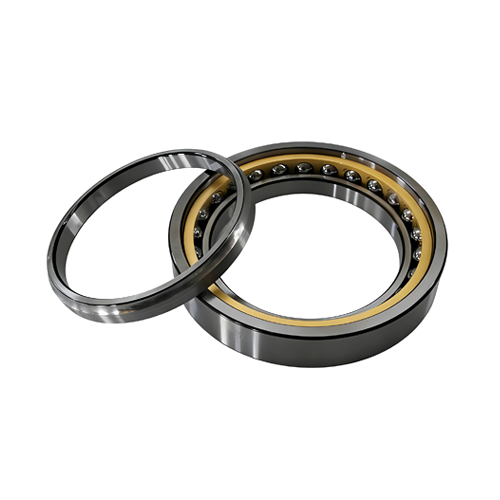

X-type four-point contact ball bearing
Metric Series（Equal cross-section: 8/13/20 mm）
| Model | d (mm) | D (mm) | B (mm) | Type | Seal Options |
|---|---|---|---|---|---|
| HX2508 | 25 | 41 | 8 | X (4-point) | Open, ZZ, 2RS |
| HX3008 | 30 | 46 | 8 | X (4-point) | Open, ZZ, 2RS |
| HX4013 | 40 | 66 | 13 | X (4-point) | Open, ZZ, 2RS |
| HX5013 | 50 | 76 | 13 | X (4-point) | Open, ZZ, 2RS |
| HX8020 | 80 | 120 | 20 | X (4-point) | Open, ZZ, 2RS |
Imperial Series（Equal cross-section: 3/16″–1″）
| Model | d (in) | D (in) | B (in) | Type | Seal Options |
|---|---|---|---|---|---|
| RXC1.000 | 1.000 | 1.375 | 0.1875 | X (4-point) | Open, ZZ, 2RS |
| RXC2.000 | 2.000 | 2.500 | 0.250 | X (4-point) | Open, ZZ, 2RS |
| RXC3.000 | 3.000 | 3.625 | 0.3125 | X (4-point) | Open, ZZ, 2RS |
| RXC4.000 | 4.000 | 4.750 | 0.375 | X (4-point) | Open, ZZ, 2RS |
X-type (four-point contact) thin-section bearings are single-row, equal-cross-section ball bearings with a unique gothic arch (X-type) raceway design. Each ball contacts the inner/outer raceways at four points, enabling radial + bidirectional axial + moment loads to be carried by one single bearing (replacing paired A-type bearings). Like A/C types, groove depth = 25% ball diameter. Features: high moment capacity, compact/lightweight, ABEC 1–7 precision, brass/nylon cage, open/ZZ/2RS seals, GCr15/440C stainless steel. Ideal for robot joints, aerospace, medical devices, optical equipment, and precision rotary tables.
