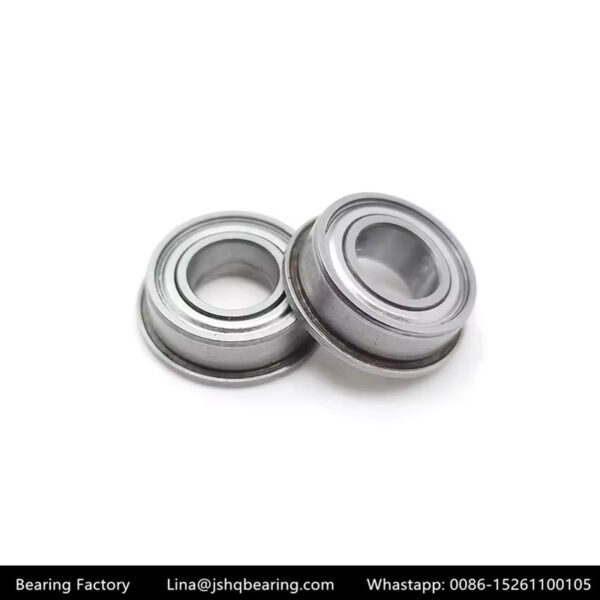

MF115 Flange Bearing
| Parameter | Specification |
|---|---|
| Bearing Model | MF115 Flange Bearing |
| Structure | Flanged Miniature Deep Groove Ball Bearing |
| Inner Diameter (d) | 5 mm |
| Outer Diameter (D) | 11 mm |
| Width (B) | 4 mm |
| Flange Outer Diameter (Df) | 12.6 mm |
| Flange Thickness (Bf) | 0.8 mm |
| Roller / Ring Material | High Carbon Chrome Steel (GCr15) or Stainless Steel |
| Cage Material | Pressed Steel or Stainless Steel |
| Dynamic Load Rating (Cr) | ~716 N |
| Static Load Rating (Cor) | ~282 – 284 N |
| Limiting Speed (Grease) | ~45,000 r/min |
| Limiting Speed (Oil) | ~53,000 r/min |
| Weight | ~0.00081 kg (0.81 g) |
| Key Features | Integrated Flange for Easy Axial Positioning, Compact Size, High-Speed Capable, Suitable for Radial & Limited Axial Loads |
