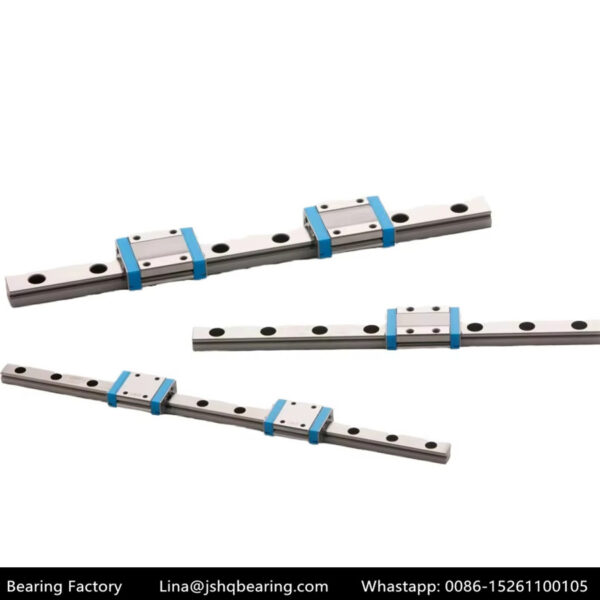

MGN12C Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 12 | ±0.03 | mm |
| Slider Length | L | 34 | ±0.08 | mm |
| Slider Width | B | 23 | ±0.08 | mm |
| Slider Height | H | 13 | ±0.03 | mm |
| Mounting Screw Hole | d1 | 2.5 | — | mm |
| Number of Screw Holes | — | 2 | — | pcs |
| Dynamic Load Rating | C | 1.7 | — | kN |
| Static Load Rating | C₀ | 2.2 | — | kN |
| Limiting Speed | — | 100 | — | m/min |
| Approximate Weight | — | 0.012 | — | kg |
