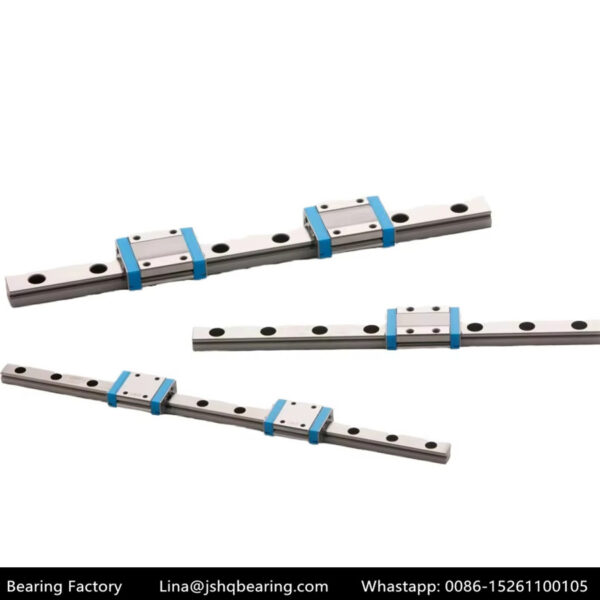

HGH30HA Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 30 | ±0.05 | mm |
| Slider Length | L | 140 | ±0.10 | mm |
| Slider Width | B | 60 | ±0.10 | mm |
| Slider Height | H | 42 | ±0.05 | mm |
| Flange Width | BF | 84 | ±0.15 | mm |
| Mounting Screw Hole | d1 | 8.0 | — | mm |
| Number of Screw Holes | — | 8 | — | pcs |
| Dynamic Load Rating | C | 52.8 | — | kN |
| Static Load Rating | C₀ | 65.6 | — | kN |
| Limiting Speed | — | 150 | — | m/min |
| Approximate Weight | — | 0.93 | — | kg |
