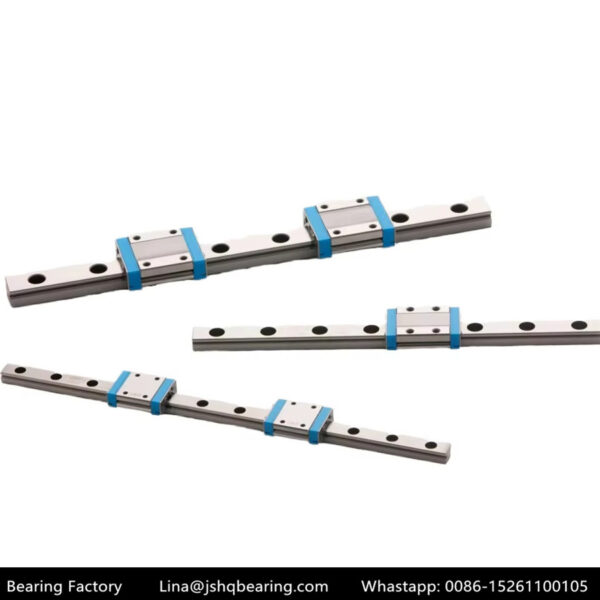

MGN15C Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 15 | ±0.03 | mm |
| Slider Length | L | 40 | ±0.08 | mm |
| Slider Width | B | 27 | ±0.08 | mm |
| Slider Height | H | 15 | ±0.03 | mm |
| Mounting Screw Hole | d1 | 3.0 | — | mm |
| Number of Screw Holes | — | 2 | — | pcs |
| Dynamic Load Rating | C | 2.6 | — | kN |
| Static Load Rating | C₀ | 3.6 | — | kN |
| Limiting Speed | — | 100 | — | m/min |
| Approximate Weight | — | 0.018 | — | kg |
