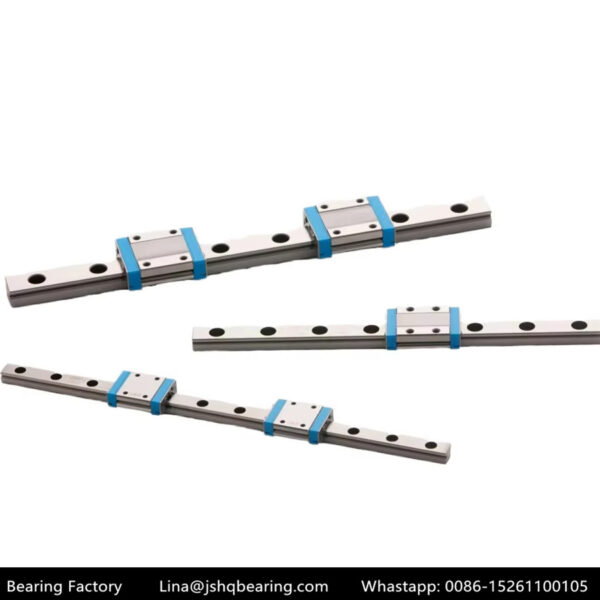

HGH25HA Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 25 | ±0.05 | mm |
| Slider Length | L | 130 | ±0.10 | mm |
| Slider Width | B | 50 | ±0.10 | mm |
| Slider Height | H | 36 | ±0.05 | mm |
| Flange Width | BF | 70 | ±0.15 | mm |
| Mounting Screw Hole | d1 | 6.6 | — | mm |
| Number of Screw Holes | — | 8 | — | pcs |
| Dynamic Load Rating | C | 36.8 | — | kN |
| Static Load Rating | C₀ | 42.2 | — | kN |
| Limiting Speed | — | 150 | — | m/min |
| Approximate Weight | — | 0.61 | — | kg |
