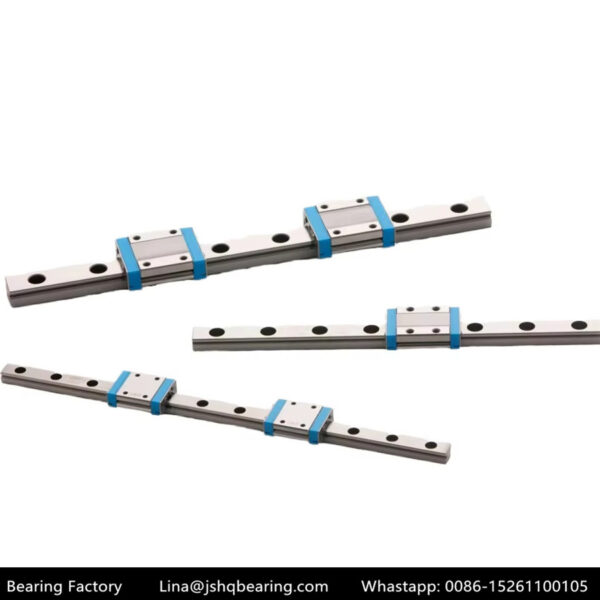

EGH15CA Linear Guide Bearing
| Dimension/Parameter | Symbol | Standard Value | Tolerance | Unit |
|---|---|---|---|---|
| Nominal Rail Width | W | 15 | ±0.05 | mm |
| Slider Length | L | 45 | ±0.10 | mm |
| Slider Width | W1 | 31 | ±0.10 | mm |
| Slider Height | H | 20 | ±0.05 | mm |
| Flange Width | Bf | 44 | ±0.15 | mm |
| Mounting Screw Hole | d | 4.5 | — | mm |
| Number of Screw Holes | — | 4 | — | pcs |
| Dynamic Load Rating | C | 5.6 | — | kN |
| Static Load Rating | C₀ | 7.0 | — | kN |
| Limiting Speed | — | 150 | — | m/min |
| Approximate Weight | — | 0.08 | — | kg |
