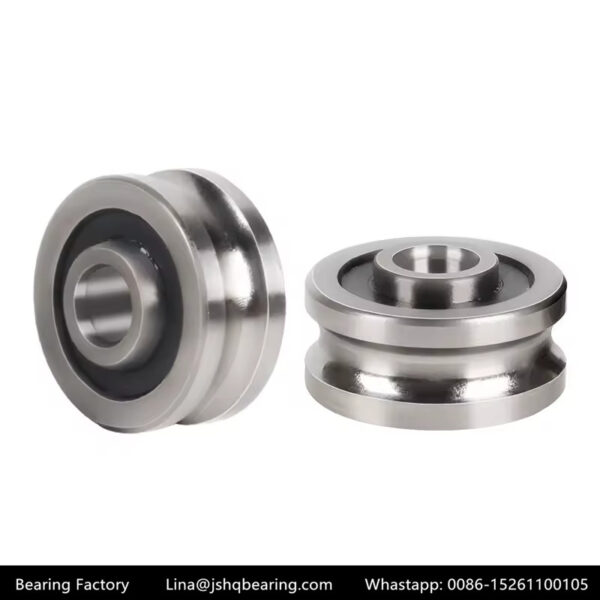

SG Groove Bearing
| Parameter | Specification | Unit |
|---|---|---|
| Inner Bore (d) | 5–10 | mm |
| Outer Diameter (D) | 17–30 | mm |
| Overall Width (B) | 5.75–10 | mm |
| Groove Type | Gothic‑arc (U‑groove) | — |
| Structure | Double‑row angular contact | — |
| Material | GCr15 Chrome Steel / 440C Stainless Steel | — |
| Seal Type | ZZ (metal shield) / 2RS (rubber seal) | — |
| Dynamic Load (Cr) | 1.27–3.5 | kN |
| Static Load (Cor) | 0.82–2.2 | kN |
| Limiting Speed | 4000–6000 | rpm |
| Application | Embroidery machines, CNC linear guides, compact conveyors, flat track systems |
