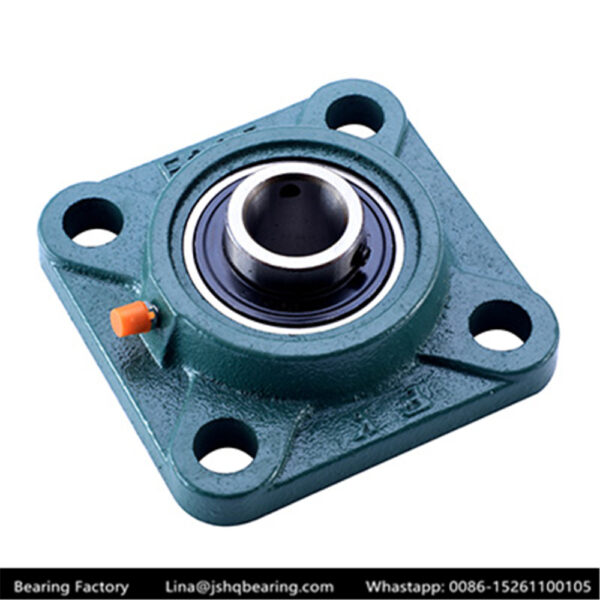

UCF200 Bearing

Model	d (Bore)	D (OD)	B (Width)	J (Bolt CTC)	L (Flange Length)	A (Flange Width)	N (Bolt Hole)	H1 (Shaft Center Ht.)	Static Load (C₀)	Dynamic Load (C)	Weight (Approx.)
UCF201	12	40	31.0	64	86	64	12.7	25.5	6.7	12.8	0.59
UCF202	15	47	34.0	64	86	64	12.7	25.5	8.8	17.5	0.62
UCF203	17	52	35.0	64	86	64	12.7	25.5	10.7	21.5	0.61
UCF204	20	62	37.0	64	86	64	12.7	25.5	14.1	28.5	0.59
UCF205	25	68	40.0	70	95	70	14.3	27.0	18.0	36.0	0.82
UCF206	30	78	42.5	83	108	83	15.9	31.0	22.4	45.0	1.10
UCF207	35	85	45.0	95	122	95	17.5	34.0	26.8	54.0	1.45
UCF208	40	90	49.0	107	137	107	19.1	37.0	31.9	62.8	1.85
UCF209	45	100	51.0	120	153	120	20.6	41.0	38.1	74.0	2.35
UCF210	50	110	53.0	133	168	133	22.2	44.0	44.0	85.5	2.90
UCF211	55	120	58.0	146	183	146	23.8	47.0	52.0	101.0	3.50
UCF212	60	130	62.0	160	200	160	25.4	51.0	60.0	115.0	4.20
UCF213	65	140	67.0	173	215	173	27.0	55.0	70.0	128.0	5.00
UCF214	70	150	71.0	187	235	187	28.6	58.0	80.7	142.0	6.00
UCF215	75	160	75.0	200	250	200	30.2	62.0	95.3	155.0	7.10
UCF216	80	170	79.0	213	265	213	31.8	65.0	110.0	171.0	8.30
UCF217	85	180	83.0	227	280	227	33.3	68.0	125.3	185.0	9.60
UCF218	90	190	87.0	240	295	240	34.9	72.0	141.3	198.0	11.00
UCF219	95	200	91.0	253	310	253	36.5	75.0	157.3	212.0	12.50
UCF220	100	210	95.0	267	325	267	38.1	78.0	174.0	225.0	14.20
