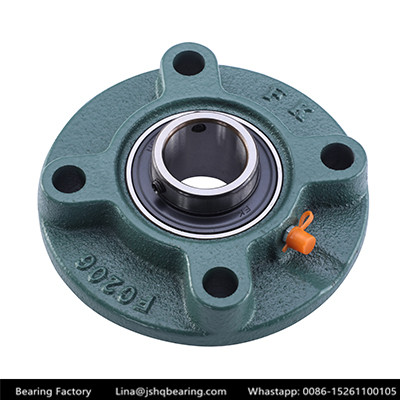

UCFC200 Bearing
| Model | d (Bore) | D (OD) | B | H1 | Bolt Circle | Bolt Hole | Static Load (Cā) | Dynamic Load (C) | Weight (Approx.) |
|---|---|---|---|---|---|---|---|---|---|
| UCFC204 | 20 | 62 | 37.0 | 28.6 | 85 | 13 | 21.2 | 31.5 | 0.70 |
| UCFC205 | 25 | 68 | 40.0 | 30.2 | 90 | 14 | 27.0 | 40.0 | 0.85 |
| UCFC206 | 30 | 78 | 42.5 | 34.1 | 100 | 15 | 33.5 | 50.0 | 1.20 |
| UCFC207 | 35 | 85 | 45.0 | 38.1 | 115 | 17 | 40.2 | 60.0 | 1.60 |
| UCFC208 | 40 | 90 | 49.0 | 42.1 | 125 | 19 | 47.8 | 69.8 | 2.00 |
| UCFC209 | 45 | 100 | 51.0 | 46.0 | 140 | 20 | 57.2 | 82.2 | 2.60 |
| UCFC210 | 50 | 110 | 53.0 | 50.0 | 155 | 22 | 66.0 | 95.0 | 3.20 |
| UCFC211 | 55 | 120 | 58.0 | 54.0 | 165 | 24 | 78.0 | 112.0 | 4.00 |
| UCFC212 | 60 | 130 | 62.0 | 57.9 | 180 | 25 | 90.0 | 128.0 | 4.80 |
| UCFC213 | 65 | 140 | 67.0 | 61.9 | 190 | 27 | 105.0 | 142.0 | 5.80 |
| UCFC214 | 70 | 150 | 71.0 | 65.9 | 205 | 29 | 121.0 | 158.0 | 7.00 |
| UCFC215 | 75 | 160 | 75.0 | 69.8 | 220 | 30 | 143.0 | 172.0 | 8.40 |
| UCFC216 | 80 | 170 | 79.0 | 73.8 | 235 | 32 | 165.0 | 190.0 | 9.90 |
| UCFC217 | 85 | 180 | 83.0 | 77.8 | 250 | 33 | 188.0 | 205.0 | 11.60 |
| UCFC218 | 90 | 190 | 87.0 | 81.8 | 265 | 35 | 212.0 | 220.0 | 13.50 |
