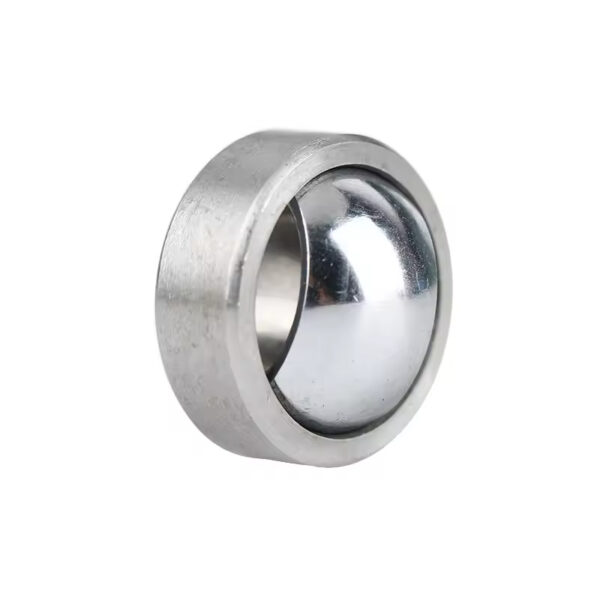

THK Spherical Plain Bearing
| Model | Type | Bore d (mm) | Outer Dia D (mm) | Width B (mm) | Max Misalignment (°) | Static Radial Load C0r (kN) | Lubrication | Key Features |
|---|---|---|---|---|---|---|---|---|
| GE12C | Standard Radial (Clearance) | 12 | 22 | 10 | 3 | 24.0 | Grease | Non-split, steel-on-steel, open |
| GE12ES | Self-Lubricating (PTFE Liner) | 12 | 22 | 10 | 3 | 20.5 | Self-lubricating | Maintenance-free, low friction |
| GE12ES-2RS | Sealed Self-Lubricating | 12 | 22 | 10 | 3 | 20.0 | Factory grease+PTFE | Double rubber seal, contamination resistant |
| GEG20C | Wide Radial | 20 | 35 | 16 | 3 | 52.0 | Grease | Extra width, higher load rigidity |
| GK15C | Angular Contact (Thrust-Radial) | 15 | 30 | 11 | 2 | 36.0 (axial C0a=48.0) | Grease | Combined heavy axial+radial |
| GE20UK | Split Type | 20 | 35 | 14 | 3 | 45.0 | Grease | Split outer ring, easy installation on fixed shafts |
