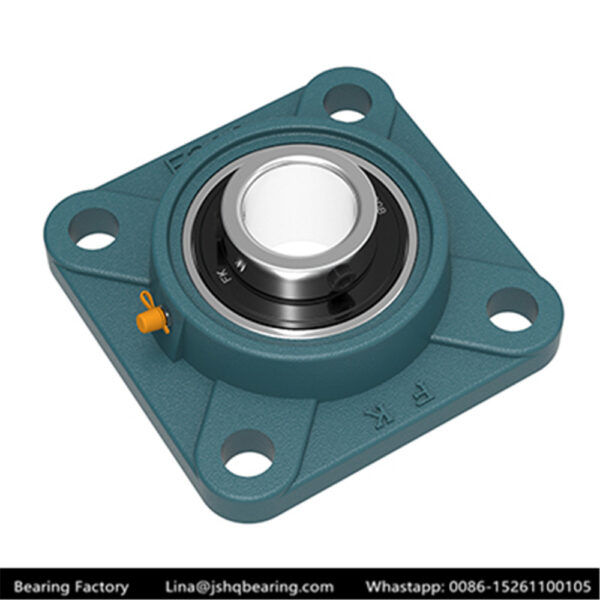

UCF300 Bearing

Model	d (Bore)	D (OD)	B (Width)	J (Bolt CTC)	A (Flange Width)	H (Shaft Center Ht.)	N (Bolt Hole)	Static Load (C₀)	Dynamic Load (C)	Weight (Approx.)
UCF305	25	72	45	76	76	34	14	31.5	60.0	1.05
UCF306	30	80	49	86	86	37	14	38.0	71.0	1.30
UCF307	35	90	53	96	96	41	16	47.5	85.0	1.60
UCF308	40	100	57	106	106	45	18	58.0	100.0	2.00
UCF309	45	110	61	118	118	49	20	71.0	118.0	2.50
UCF310	50	120	65	130	130	53	20	85.0	138.0	3.10
UCF311	55	130	69	142	142	57	22	102.0	160.0	3.80
UCF312	60	140	73	154	154	61	22	120.0	182.0	4.60
UCF313	65	150	77	166	166	65	24	140.0	205.0	5.50
UCF314	70	160	81	178	178	69	26	162.0	230.0	6.60
UCF315	75	170	85	190	190	73	28	188.0	255.0	7.80
UCF316	80	180	89	202	202	77	28	215.0	280.0	9.20
UCF317	85	190	93	214	214	81	30	245.0	305.0	10.80
UCF318	90	200	97	226	226	85	32	278.0	330.0	12.50
UCF319	95	210	101	238	238	89	32	312.0	355.0	14.50
UCF320	100	220	105	250	250	93	35	348.0	380.0	16.80
